Researchers measure in-situ stress by heating, breaking rock to advance the safety of carbon capture and storage
Erin Lorraine Broberg

Each year, gigatons of carbon dioxide (CO2) are emitted into our atmosphere. There, the potent greenhouse gas absorbs heat and warms our planet. To stall the warming process, there is a global effort not only to reduce carbon emissions, but to capture and store excess CO2 in geologic reservoirs deep underground.

Currently, more than two dozen projects are utilizing this carbon capture and storage process around the world, trapping millions of tons of CO2 beneath our feet every year.

Here’s how it works: CO2 is collected from the source or extracted from the atmosphere, then injected into a deep underground geologic reservoir. The reservoir is composed of porous rocks, like sandstone or limestone. Just above the reservoir, a layer of dense caprock seals the “plume” of CO2 underground, trapping it in place.

The Earth’s crust holds enough potential reservoirs for humanity to store excess CO2 emissions for hundreds of years to come. Still, the promise of deep underground carbon storage is not without challenges. One of those challenges is doing the work safely.

“Imagine that you are inflating a balloon underground, and if you over-inflate that balloon, the rock can begin to crack and move in response,” said Sam Voegeli, staff consultant at RESPEC, a consulting firm based in Rapid City, South Dakota with clients around the world.

Over-stressing a reservoir could lead to ground instability and earthquakes. The increased stress could also cause the caprock—the reservoir’s seal—to break. Without a seal, the plume of CO2 could leak from the reservoir and escape into Earth’s atmosphere, rendering the entire process useless.

With these risks in mind, researchers want to make detailed stress measurements of potential reservoirs before using a location for CO2 storage. Such measurements are not easy to come by.

The challenge of measuring in-situ stress

“Unlike water, rock stress is not uniformly more intense the deeper you go. Yes, the weight of the rock above gives you a measurable stress, but there’s a lot more to it,” said Tim Kneafsey, staff Earth scientist at Lawrence Berkeley National Laboratory (Berkeley Lab). “Tectonic plates compress the rock. Other sections are being pulled apart. Some mountain ranges even act like books on a shelf, leaning over on each other. Different rock strengths and compositions and interactions and imbalances all culminate in complex, surprising stress patterns.”

Carbon storage reservoirs are located thousands of feet beneath the surface, some deeper than 5,000 feet. Current stress-measurement technologies, however, don’t work beyond depths of about 2,000 feet.

“When you are near the surface, you have a lot of options for measuring stress,” said Jay Nopola, RESPEC vice president. “The deeper you go underground, the fewer options you have.”

On the 4100 Level of Sanford Underground Research Facility (SURF), researchers are developing a tool that uses heat to measure rock stress—which could make CO2 storage safer. “Our team is trying to expand the window of conditions where we can measure stress accurately and in a cost-efficient way,” said Nopola, who is the research group’s primary investigator.

Funded by the U.S. Department of Energy’s National Energy Technology Laboratory, the group brings together experts from industry, universities, and national and state laboratories. Led by RESPEC, a consulting firm that serves seven markets, including mining and energy, the group includes SURF; Berkeley Lab; the University of Wisconsin, Madison; Integrity Insitu; and private consultants Thomas Doe and Daniel Moos.

Taking rock to its breaking point

The team is testing a stress-measurement method called “thermal breakout.”

“In a nutshell, we are heating the rock until it breaks,” said Voegeli, RESPEC project manager for the research group. “If you add heat to something, it tries to expand. But when you heat rocks that are trapped deep underground, they can’t expand. With enough added heat, the rocks will break. How and when the rocks break can tell us a lot about the stress conditions of the rock.”

The method works well in controlled laboratory tests, but the group wants to run more tests deep underground, where complex, high-stress conditions abound

This spring, the group will deploy their thermal breakout tool on SURF’s 4100 Level, where they’ve already prepared the testbed: two boreholes, both 6 inches in diameter and 80 feet long, that transverse highly stressed rhyolite and amphibolite rock formations.

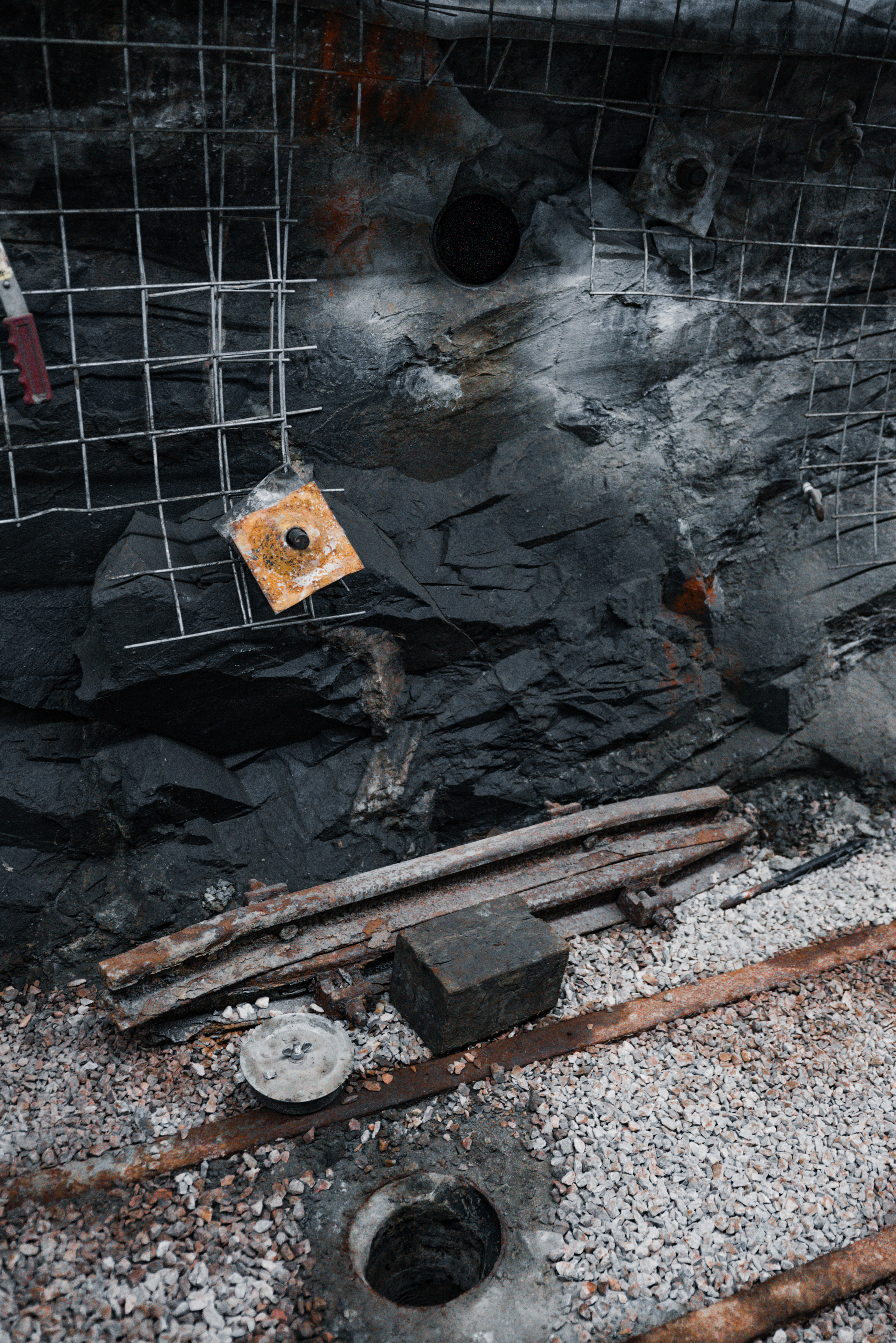

Photo of a drift wall, with two boreholes: one in the wall and one in the floor.
Researchers drilled two boreholes for their 4100 Level testbed: one in the drift wall and another on the floor of the drift. Photo by Adam Gomez



The tool, a long, narrow cylinder, will be placed into a borehole. There, it functions as a two-way street: it delivers heat to the rock then ushers mounds of data back to the research team.

The tool will start to warm the rock quickly, reaching 800 degrees Fahrenheit in one hour. As the rock heats, it will expand and increase the stress of the formation. When there is no more wiggle room, the rock will “spall,” or break. The breakage is small—more of a crumble than a crack—and won’t undermine the integrity of the drift in which the researchers stand

Researchers will receive data that details how hot the rock became before breaking; how much the rock expanded before breaking; how much electrical power was consumed by the process; information on how the tool operated; and highly detailed images of the borehole after the test is complete. Researchers will even be able to listen to the rock as it breaks and they will use this information to estimate the stresses in the rock.

“We have acoustic emission sensors—think of them as super sensitive microphones,” Voegeli said. “They hear when the rock breaks and can help us triangulate where exactly the fracture happened in the borehole.”

The team will repeatedly deploy the tool at various points along the boreholes and synthesize the data to model the stress of the rock formation. These tests will improve and troubleshoot the tool, readying it for field-scale experiments

“After our tests at SURF, the next step is to deploy the tool in a deep borehole, drilled from the ground surface to 5,000 feet deep,” Voegeli said. “This will take place in a well that is nearly identical to an actual CO2 well, so we can test its usefulness in the real-world, end application.”

Building partnerships in the drift

Just a short walk down the drift from the thermal breakout studies area is another testbed, this one belonging to the Enhanced Geothermal Systems (EGS) Collab. The EGS Collab is researching how fracture networks within rock formations can be used to advance geothermal energy systems.

Both groups share a keen interest in the rock that surrounds the 4100 Level.

This shared interest has resulted in a unique partnership, one that goes beyond an open data-sharing agreement to include hands-on help when needed. When COVID-19 limited the travel of EGS Collab researchers, locally based RESPEC teams were able to log core from boreholes drilled for the EGS Collab team.



Tyler Artz portrait
Tyler Artz, RESPEC work lead for the project, before heading underground to visit the 4100 Level testbed. Photo by Adam Gomez



Kneafsey, a researcher with the thermal breakout studies and the principal investigator of EGS Collab, helps the groups interface and share information. “It’s been a helpful partnership,” Kneafsey said. “We’ve shared all our data with each other, we participate in each other’s project meetings, we are aware of what each group is doing and learning.”

In both CO2 storage and geothermal energy, current technologies and infrastructure lag behind the world’s climate targets. But as research groups work in tandem, their shared discoveries push us toward a more sustainable future.

“It’s going to take more work to completely understand the measurements and potential for this [thermal breakout] tool,” Kneafsey said. “I’m really excited about the project and just totally impressed by the tool that they’ve designed.”
